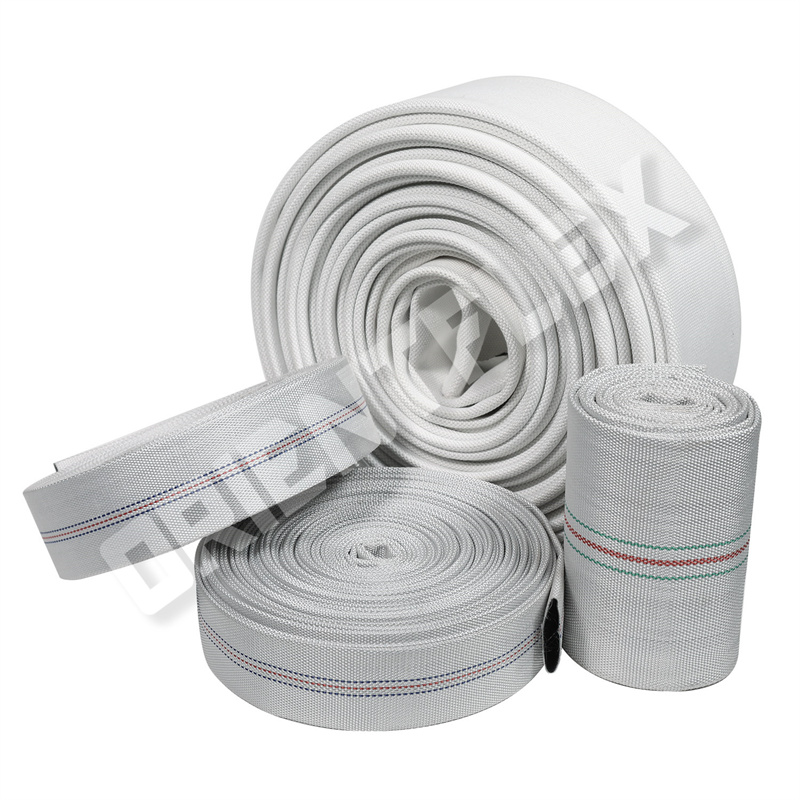

Single Jacket Fire Hose
Single Jacket Fire Hose
Orientflex is an expert in fire fighting solutions. Besides fire hose, we offer you various fittings like American type, German type, Russian type, Canada type, etc.
Single Jacket Fire Hose Structure
Lining: PVC/rubber/PU
Cover: Polyester jacket
Orientflex offers you different kinds of rubber lined hose. We can offer you PVC lined layflat hose, rubber lined attack hose and PU lined fire hose. Rubber lined fire fighting hose has better aging and weather resistance. While NBR lined fire hose has excellent oil and corrosion resistance. Then PU lined fire truck hose is more durable and safe.
Single Jacket Fire Hose Features
- Light weight, long service life
- Resists ozone, low temp, oil and wear
- Working pressure: 8bar, 10bar, 13bar, 16bar, 20bar, 25bar
Rubber Lined Fire Hose Application
It’s mainly for fire fighting and other emergency to transfer water from a resource to the fire site. Because such fire hose can bear high pressure and high temp. Besides, the rubber lining helps prevent the kink and twist, which can cause water flow disrupted.
Besides fire fighting, such hose is ideal for many other usages.
First, forestry. With such a layflat hose, you can deliver large volume of water to the forest. Then you can do some irrigation and fire fighting work.
Second, agriculture. With a long fire hose, such as 100 meters, you can deliver water to the farm. It’s also an assistant for the spray irrigation. With such hose, you don’t have to use large number of water tanks. Because the hose can deliver water constantly.
Third, construction. It is ideal for dewater and pump works. For example, it can deliver water to the higher layers with a pump.
Fourth, mine. Some mine owners in Africa and Russia use the fire hose as slurry hose. Besides, they use it to deliver and discharge mineral water.
Last, civil use. You can use the layflat hose to water your plants, wash your car and fill your swimming pool. While in some countries like Canada, people use small size layflat hose as garden hose.
In general, rubber lined fire hose is ideal for the apps where need large volume of water.
Orientflex is an expert in fire fighting solutions. Besides fire hose, we offer you various fittings. Like American type, German type, Russian type, Canada type, etc.
Single Jacket Fire Hose Specification
| ID | WP | BP | L | |||
| inch | mm | bar | mpa | bar | mpa | m |
| 1" | 25 | 10-25 | 1.0-2.5 | 30-75 | 3.0-7.5 | 40 |
| 1-1/4" | 32 | 10-25 | 1.0-2.5 | 30-75 | 3.0-7.5 | 40 |
| 1-1/2" | 38 | 10-25 | 1.0-2.5 | 30-75 | 3.0-7.5 | 40 |
| 1-3/4" | 45 | 10-25 | 1.0-2.5 | 30-75 | 3.0-7.5 | 40 |
| 2" | 51 | 10-25 | 1.0-2.5 | 30-75 | 3.0-7.5 | 40 |
| 2-1/2" | 64 | 10-25 | 1.0-2.5 | 30-75 | 3.0-7.5 | 40 |
| 2-3/4" | 70 | 10-25 | 1.0-2.5 | 30-75 | 3.0-7.5 | 40 |
| 3" | 76 | 10-25 | 1.0-2.5 | 30-75 | 3.0-7.5 | 40 |
| 4" | 102 | 10-25 | 1.0-2.5 | 30-75 | 3.0-7.5 | 40 |
| 5" | 127 | 10-25 | 1.0-2.5 | 30-75 | 3.0-7.5 | 40 |
| 6" | 152 | 10-25 | 1.0-2.5 | 30-75 | 3.0-7.5 | 40 |
