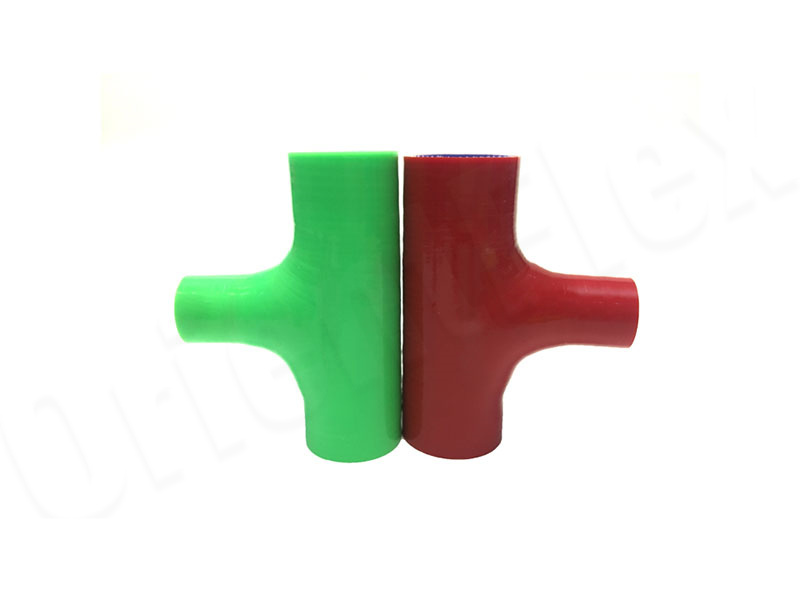

Silicone T Hose
Silicone T Hose
Silicone T hose is a three-way which is to connect two or three hoses together. Great temperature resistance makes it ideal for all the systems in the vehicle. Besides standard silicone hose T piece, Orientflex offers you reducer T hose. Contact us now and get the best quotation.
Silicone T Hose
Tube: 100% High quality silicone
Reinforcement: Four ply of polyester/aramid fabric
Cover: Silicone
Color: Black, red, blue, green, yellow
Temperature: -40℃ to +220℃ (-40℉ to +428℉)
Silicone T Piece is built for coolant plumbing applications with endurance and high performance. Silicone material with 4ply or 5ply reinforcement makes the hose tough and reliable. T piece silicone hose is three-way silicone coupler and flexible in the temperature from -55℃ to +250℃. Technology and quality conform to the high standards. Bright colour with a smooth and shiny “wipe-down” finish. Used with hose clamps to construct the exact bends and lengths.
Silicone T Hose Features
- High temperature and aging resistant: -40℃ ~ +220℃
- Physical laziness, good air permeability
- Good electrical insulating performance
- Odourless, nontoxic and eco-friendly
- We offer OEM/ODM, 3D design and we can produce according to your drawings
Silicone T Hose Application
Heating and cooling systems, cac charge-air-cooler (hot & cold side), turbo charger systems & custom compressor, intercooler or intake & inlet piping for turbo, superchargers, etc.
Silicone T Hose Specification
| ID | Layer | Thickness | Length | ID | Layer | Thickness | Length | ||
| inch | mm | ply | mm | mm | inch | mm | ply | mm | mm |
| 1 1/2"x5/8" | 38x16 | 4 | 4-5 | 102x50 | 2 3/8"x1 1/3" | 60x34 | 4 | 4-5 | 102x50 |
| 1 1/2"x1" | 38x25 | 4 | 4-5 | 102x50 | 2 1/2"x1" | 63X25 | 4 | 4-5 | 102x50 |
| 1 3/4"x1" | 45x25 | 4 | 4-5 | 102x50 | 2 1/2"x1 1/3" | 63X34 | 4 | 4-5 | 102x50 |
| 2"x1" | 51x25 | 4 | 4-5 | 102x50 | 2 3/4"x1" | 70x25 | 4 | 4-5 | 102x50 |
| 2"x1 1/3" | 51x34 | 4 | 4-5 | 102x50 | 2 3/4"x1 1/3" | 70x34 | 4 | 4-5 | 102x50 |
| 2 1/4"x1 1/3" | 57x34 | 4 | 4-5 | 102x50 | 3"x1" | 76x25 | 4 | 4-5 | 102x50 |
| 2 3/8"x1" | 60x 25 | 4 | 4-5 | 102x50 | 3"x1 1/3" | 76x34 | 4 | 4-5 | 102x50 |
| 2 3/8"x1 1/3" | 60x34 | 4 | 4-5 | 102x50 | 1 1/2"x5/8" | 38x16 | 4 | 4-5 | 102x50 |
| 2 1/2"x1" | 63X25 | 4 | 4-5 | 102x50 | 1 1/2"x1" | 38x25 | 4 | 4-5 | 102x50 |
| 2 1/2"x1 1/3" | 63X34 | 4 | 4-5 | 102x50 | 1 3/4"x1" | 45x25 | 4 | 4-5 | 102x50 |
| 2 3/4"x1" | 70x25 | 4 | 4-5 | 102x50 | 2"x1" | 51x25 | 4 | 4-5 | 102x50 |
| 2 3/4"x1 1/3" | 70x34 | 4 | 4-5 | 102x50 | 2"x1 1/3" | 51x34 | 4 | 4-5 | 102x50 |
| 3"x1" | 76x25 | 4 | 4-5 | 102x50 | 2 1/4"x1 1/3" | 57x34 | 4 | 4-5 | 102x50 |
| 3"x1 1/3" | 76x34 | 4 | 4-5 | 102x50 | 2 3/8"x1" | 60x 25 | 4 | 4-5 | 102x50 |
| 1 1/2"x5/8" | 38x16 | 4 | 4-5 | 102x50 | 2 3/8"x1 1/3" | 60x34 | 4 | 4-5 | 102x50 |
| 1 1/2"x1" | 38x25 | 4 | 4-5 | 102x50 | 2 1/2"x1" | 63X25 | 4 | 4-5 | 102x50 |
| 1 3/4"x1" | 45x25 | 4 | 4-5 | 102x50 | 2 1/2"x1 1/3" | 63X34 | 4 | 4-5 | 102x50 |
| 2"x1" | 51x25 | 4 | 4-5 | 102x50 | 2 3/4"x1" | 70x25 | 4 | 4-5 | 102x50 |
| 2"x1 1/3" | 51x34 | 4 | 4-5 | 102x50 | 2 3/4"x1 1/3" | 70x34 | 4 | 4-5 | 102x50 |
| 2 1/4"x1 1/3" | 57x34 | 4 | 4-5 | 102x50 | 3"x1" | 76x25 | 4 | 4-5 | 102x50 |
| 2 3/8"x1" | 60x 25 | 4 | 4-5 | 102x50 | 3"x1 1/3" | 76x34 | 4 | 4-5 | 102x50 |
