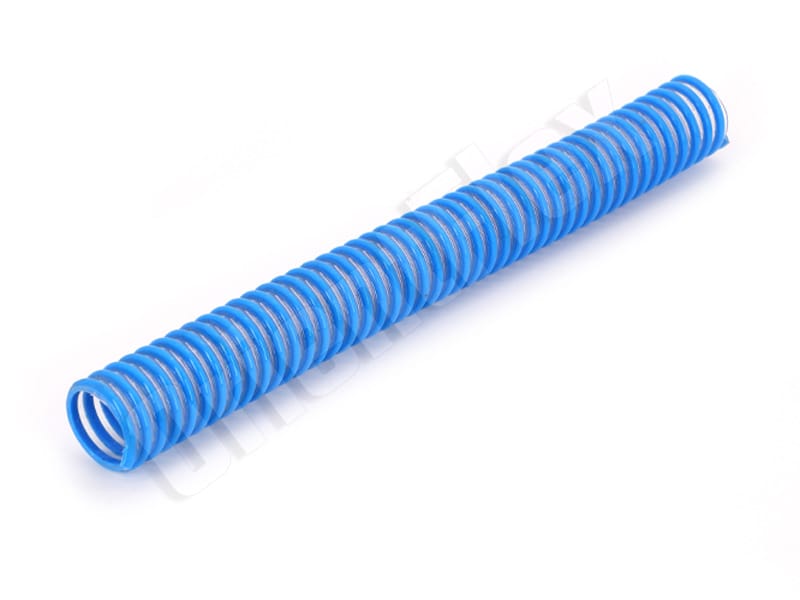

PVC Suction Hose
PVC Suction Hose
PVC suction hose is the best choice for water pumps in agriculture. With a reinforced PVC, the plastic suction hose is abrasion resistant and more durable. While it can withstand both positive and negative pressure. Inquire the Direct Factory Price Now!
Suction Hose Structure
Tube & Cover: High quality pvc with rigid pvc helix
Temperature: -10℃ to +65℃ (14℉ to +150℉)
Application: Suction hose pipe is designed for regular water supply and drainage to transport various powdery particles and liquids. It is widely used in civil and building works, agriculture, mining, construction, shipbuilding and fishery.
Flexible Suction Hose Pipe is commonly seen on pumps and many industries. It is a non-marking, lightweight, mild abrasion and chemical resistant hose which is easy to handle and typically used in lighter duty applications.
The clear Suction Hose permits excellent visibility and its smooth exterior and interior allow for maximum flow of products. This hose is not suitable for transferring fuels and is also FDA approved for potable water. Inquire the Direct Factory Price Now!
PVC Water Suction Hose Features
- Smooth inner construction for unrestricted flow of materials
- Constructed with rigid spiral helix
- Small bending radius
- Impact & crush resistant
- Abrasion & chemical resistant
- Economical & flexible
PVC Suction Hose Light Duty
| I.D | OD | Thickness | W.P(at20˚C) | Vacuum Rat | Bend Radius | Length | ||
| inch | mm | mm | mm | bar | psi | mmHg(68˚F) | mm | m |
| 3/4" | 19.0±0.5 | 23.0±0.5 | 2.0 | 4.0 | 58 | 750 | 70 | 50 |
| 1" | 25.4±0.5 | 29.4±0.5 | 2.0 | 4.0 | 58 | 750 | 70 | 50 |
| 1-1/4" | 31.7±0.5 | 36.7±0.5 | 2.5 | 4.0 | 58 | 750 | 90 | 50 |
| 38.1±0.5 | 44.1±0.5 | 3.0 | 4.0 | 58 | 750 | 110 | 50 | |
| 50.8±1.0 | 56.8±1.0 | 3.0 | 4.0 | 58 | 750 | 150 | 50 | |
| 63.5±1.0 | 69.5±1.0 | 3.0 | 3.0 | 44 | 750 | 180 | 50 | |
| 3" | 76.2±1.0 | 83.2±1.0 | 3.5 | 3.0 | 44 | 750 | 220 | 50 |
| 4" | 101.6±1.5 | 109.6±1.5 | 4.0 | 3.0 | 44 | 750 | 330 | 50 |
PVC Suction Hose Medium Duty
| I.D | OD | Thickness | W.P(at20˚C) | Vacuum Rat | Bend Radius | Length | ||
| inch | mm | mm | mm | bar | psi | mmHg(68˚F) | mm | m |
| 3/4" | 19.0±0.5 | 24.0±0.5 | 2.5 | 4.5 | 65 | 750 | 70 | 50 |
| 1" | 25.4±0.5 | 30.4±0.5 | 2.5 | 4.5 | 65 | 750 | 70 | 50 |
| 1-1/4" | 31.7±0.5 | 38.7±0.5 | 3.5 | 4.5 | 65 | 750 | 90 | 50 |
| 1-1/2" | 38.1±0.5 | 45.1±0.5 | 3.5 | 4.5 | 65 | 750 | 110 | 50 |
| 2" | 50.8±1.0 | 57.8±1.0 | 3.5 | 4.5 | 65 | 750 | 150 | 50 |
| 2-/2" | 63.5±1.0 | 70.5±1.0 | 3.5 | 3.5 | 50 | 750 | 180 | 50 |
| 3" | 76.2±1.0 | 84.2±1.0 | 4.0 | 3.5 | 50 | 750 | 220 | 50 |
| 4" | 101.6±1.5 | 111.6±1.5 | 5.0 | 3.5 | 50 | 750 | 330 | 50 |
| 5" | 127.0±1.5 | 139.0±1.5 | 6.0 | 2.7 | 43 | 750 | 500 | 50 |
| 6" | 152.4±1.5 | 166.4±1.5 | 7.0 | 2.7 | 43 | 750 | 700 | 30 |
| 8" | 203.2±1.5 | 219.2±1.5 | 8.0 | 2.0 | 29 | 750 | 1100 | 11.8 |
| 10" | 254.0±1.5 | 274.0±1.5 | 10.0 | 2.0 | 29 | 750 | 1400 | 11.8 |
| 12" | 304.8±1.5 | 324.8±1.5 | 10.0 | 2.0 | 29 | 750 | 1800 | 11.8 |
| 14" | 355.6±1.5 | 375.6±1.5 | 10.0 | 2.0 | 29 | 750 | 2200 | 11.8 |
PVC Suction Hose Heavy Duty
| I.D | OD | Thickness | W.P(at20˚C) | Vacuum Rat | Bend Radius | Length | ||
| inch | mm | mm | mm | bar | psi | mmHg(68˚F) | mm | m |
| 3/4" | 19.0±0.5 | 25.0±0.5 | 3.0 | 5.0 | 72 | 750 | 70 | 50 |
| 1" | 25.4±0.5 | 32.4±0.5 | 3.5 | 5.0 | 72 | 750 | 70 | 50 |
| 1-1/4" | 31.7±0.5 | 39.7±0.5 | 4.0 | 5.0 | 72 | 750 | 90 | 50 |
| 1 1/2 | 38.1±0.5 | 46.1±0.5 | 4.0 | 5.0 | 72 | 750 | 110 | 50 |
| 2 | 50.8±1.0 | 58.8±1.0 | 4.0 | 5.0 | 72 | 750 | 150 | 50 |
| 2 1/2 | 63.5±1.0 | 72.5±1.0 | 4.5 | 4.0 | 58 | 750 | 180 | 50 |
| 3" | 76.2±1.0 | 86.2±1.0 | 5.0 | 4.0 | 58 | 750 | 220 | 50 |
| 4 | 101.6±1.5 | 116.6±1.5 | 7.5 | 4.0 | 58 | 750 | 330 | 50 |
| 5" | 127.0±1.5 | 141.0±1.5 | 7.0 | 3.0 | 44 | 750 | 500 | 50 |
| 6" | 152.4±1.5 | 170.4±1.5 | 9.0 | 3.0 | 44 | 750 | 700 | 30 |
| 8" | 203.2±1.5 | 225.2±1.5 | 11.0 | 2.5 | 36 | 750 | 1100 | 11.8 |
| 10" | 254.0±1.5 | 278.0±1.5 | 12.0 | 2.5 | 36 | 750 | 1400 | 11.8 |
| 12" | 304.8±1.5 | 328.8±1.5 | 12.0 | 2.5 | 36 | 750 | 1800 | 11.8 |
| 14" | 355.6±1.5 | 379.6±1.5 | 12.0 | 2.5 | 36 | 750 | 2200 | 11.8 |
