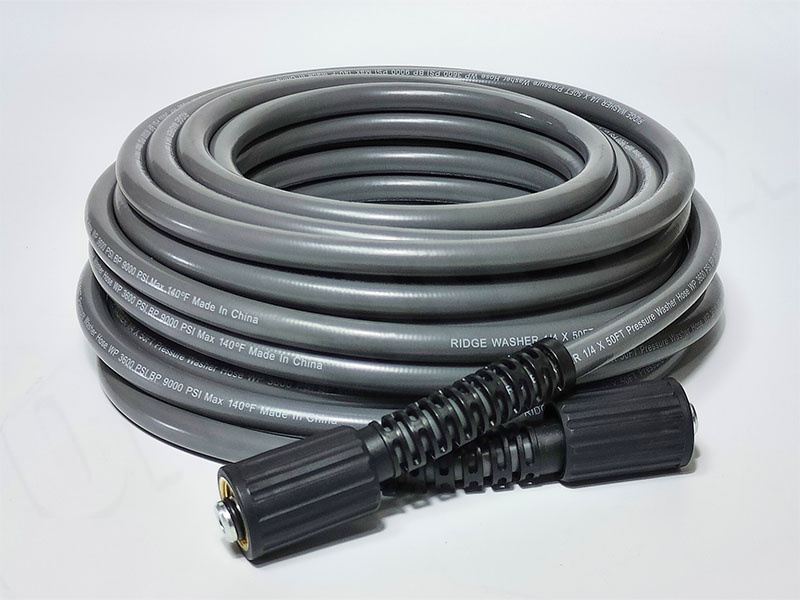

PVC Pressure Washer Hose
PVC Pressure Washer Hose
PVC pressure hose is ideal for water blasting and general cleaning work. Such high quality and durable washer hose is ideal for both civil use and industrial applications.
Pressure Washer Hose Structure
Tube & Cover: Smooth PVC
Reinforce: High tensile polyester fibre braid
Temperature: -10℃ to +65℃ ( 14˚F to 150˚F)
Application: Widely used for household water cleaning, vehicle washing and the washing in the park, community, factory and so on.

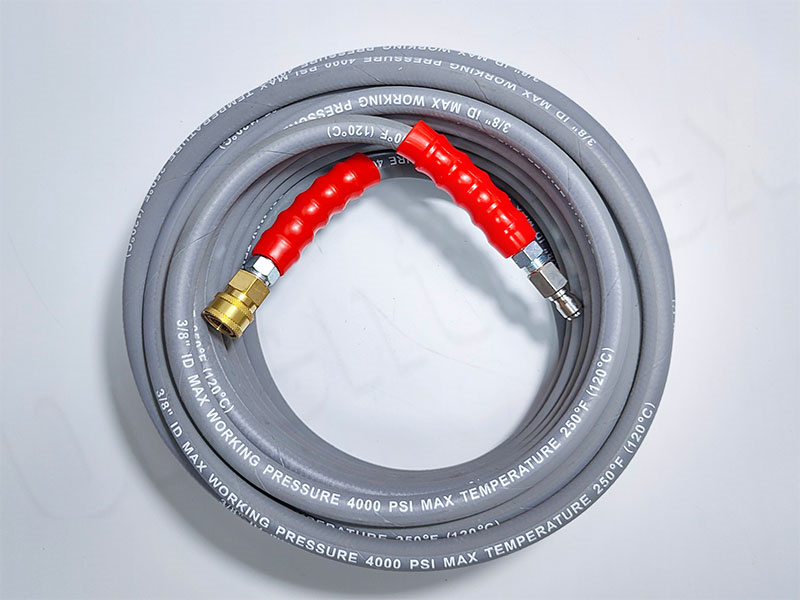

PVC High Pressure Washer Hose is designed for high pressure water blasting and to clean even the dirtiest industrial surface. It can withstand the heavy-duty water pressure force without abrasion, crushing or kinking. The hose consists a grey and non marking synthetic rubber cover and a nitrile rubber tube. It can be used at high temperature up to 300℉ and high pressure up to 3000 psi.
Pressure Washer Pipe Features
- M22*1.5 Metric male or female fitting on both ends
- Easy to connect to washer gun
- Light weight, easy to handle
- High flexbility and anti-kinking
- High abrasion resistance
- Max working pressure 3000psi
PVC Pressure Washer Hose Specification
| ID | OD | WP | BP | BR | KG | ||||||
| inch | mm | inch | mm | mpa | psi | mpa | psi | mm | inch | kg/m | lb/ft |
| 1/4" | 6.4 | 0.47 | 12 | 21 | 3000 | 84 | 12000 | 102 | 4 | 0.15 | 0.1 |
| 1/4" | 6.4 | 0.59 | 15 | 40 | 5800 | 160 | 23200 | 102 | 4 | 0.24 | 0.16 |
| 5/16" | 7.9 | 0.59 | 15.1 | 21.5 | 3120 | 86 | 12480 | 114 | 4.5 | 0.17 | 0.11 |
| 5/16" | 7.9 | 0.65 | 16.5 | 35 | 5075 | 140 | 20300 | 114 | 4.5 | 0.29 | 0.19 |
| 3/8" | 9.5 | 0.69 | 17.5 | 18 | 2615 | 72.1 | 10460 | 127 | 5 | 0.22 | 0.15 |
| 3/8" | 9.5 | 0.75 | 19.1 | 33 | 4800 | 132 | 19200 | 127 | 5 | 0.34 | 0.23 |
