PVC Fibre Reinforced Suction Hose
PVC Fibre Reinforced Suction Hose
PVC fabric reinforced suction hose is made with a specially formulated material to resist the cracking. The high tensile strength polyester yarn reinforce is ideal for both suction and higher pressure discharge projects. Inquire the Direct Factory Price Now!
Suction Hose Structure
Tube & Cover: High quality pvc with rigid pvc helix
Temperature: -4˚F(-20℃)to 150˚F(+65℃)
Application: The PVC fibre suction hose is used for Fish suction; Irrigation lines; Pumps, rental and construction dewatering
Pumps,trash; Suction and discharge; Water suction at heavy duty
PVC Water Suction Hose Features
- High tensile strength polyester yarn jacket reinforce layer makes the hose can handle both suction and high pressure discharge projects.
- Transparent tube allows for visual confirmation of material flow.
- Rigid helix design protects hose from cover wear, easy to handle.
PVC Suction Hose Light Duty
| I.D | OD | Thickness | W.P | Vacuum Rat | Bend Radius | Length | weight | |
| inch | mm | mm | mm | psi | mmHg(68˚F) | mm | m | kg/m |
| 1-1/2" | 38.1 | 48.1 | 5 | 100 | 750 | 20 | 30 | 0.42 |
| 2" | 50.8 | 63.0 | 6 | 100 | 750 | 25 | 30 | 1.1 |
| 2-1/2" | 64.0 | 78.0 | 7 | 100 | 750 | 30 | 30 | 1.50 |
| 3" | 76.2 | 92.0 | 8 | 90 | 750 | 30 | 30 | 1.80 |
| 4" | 101.6 | 121.0 | 9 | 90 | 750 | 40 | 30 | 2.70 |
| 5" | 127.0 | 149.0 | 11 | 60 | 750 | 60 | 30 | 3.50 |
| 6" | 152.4 | 174.0 | 11 | 50 | 750 | 75 | 30 | 5.70 |
| 8" | 203.5 | 227.0 | 12 | 50 | 750 | 95 | 12 | 8.00 |

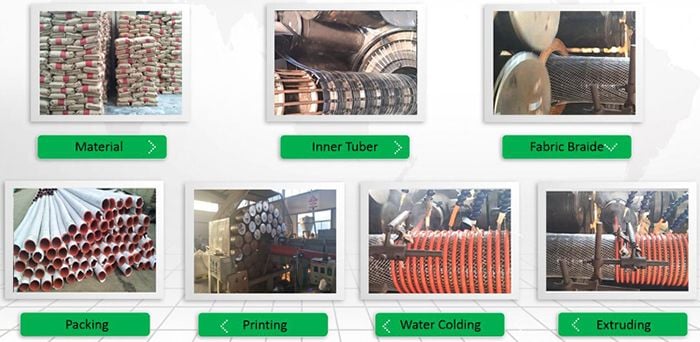

Hose Production Details
