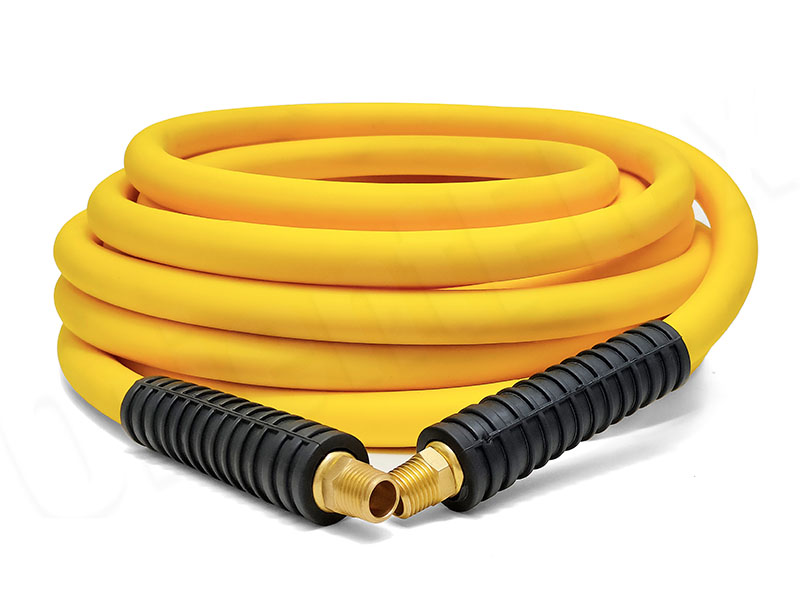

PVC Air Hose
PVC Air Hose
PVC air hose is one of the most used hoses. You can see it in our daily life and production activities. Because air tube is ideal for general air ransfer and various pneumatic tools. For example, air compressor.
PVC Air Hose Structure
Tube: PVC
Reinforcem: One ply or two ply of high tensile polyester braid
Cover: PVC, black, red, yellow and blue are available
Temperature: -10℃ to 65℃( 14℉ to +150℉ )
Application: Widely serves as pneumatic hose in air compressor, rock drill, automated air line, cleaning equipment, construction equipment and so on.
PVC Air Hose is made from virgin resin PVC. Thus the air pipe can be flexible and low temperature resistant. The outer cover is also made from virgin resin PVC , which is UV, oil and abrasion resistant. The pvc air compressor hose is reinforced with extra strong polyester braiding. Thus it is 20% less weight than the rubber hose. This air hose resists cracking and fading.
The Air Hose PVC remains flexible down to -40℉ and offers working pressure up to 300 PSI. It’s designed for power tools, filling tires, air and other compressed air applications. PVC air compressor lines are great for construction, automotion, industry, agriculture and fleet applications. The lightweight air hose will not change color or fade when exposed to natural elements.
PVC Air Tube Features
- Can be used for jackhammer hose
- High tensile polyester reinforced
- Work under high pressure 300psi
- Strong peeling adhesion between fibre and pvc
- Light, flexible, non-kinking, non-twisting
- UV, ozone and weather resistant
PVC Air Hose Specification
| ID | OD | WP | BP | L | |||
| inch | mm | mm | psi | bar | psi | bar | m/roll |
| 1/4" | 6.4 | 12 | 300 | 20 | 900 | 60 | 100 |
| 1/4" | 6.4 | 12 | 600 | 40 | 1200 | 120 | 100 |
| 5/16" | 8 | 14 | 300 | 20 | 900 | 60 | 100 |
| 5/16" | 8 | 14 | 600 | 40 | 1200 | 120 | 100 |
| 3/8" | 10 | 16 | 300 | 20 | 900 | 60 | 100 |
| 3/8" | 10 | 17 | 600 | 40 | 1200 | 120 | 100 |
| 1/2" | 13 | 20 | 300 | 20 | 900 | 60 | 100 |
| 5/8" | 16 | 25 | 300 | 20 | 900 | 60 | 50 |
| 3/4" | 19 | 28 | 300 | 20 | 900 | 60 | 50 |
| 1" | 25 | 35 | 300 | 20 | 900 | 60 | 50 |
| 1-1/4" | 32 | 44 | 300 | 20 | 900 | 60 | 50 |
| 1-1/2" | 38 | 50 | 300 | 20 | 900 | 60 | 50 |
| 2" | 50 | 64 | 300 | 20 | 900 | 60 | 50 |
