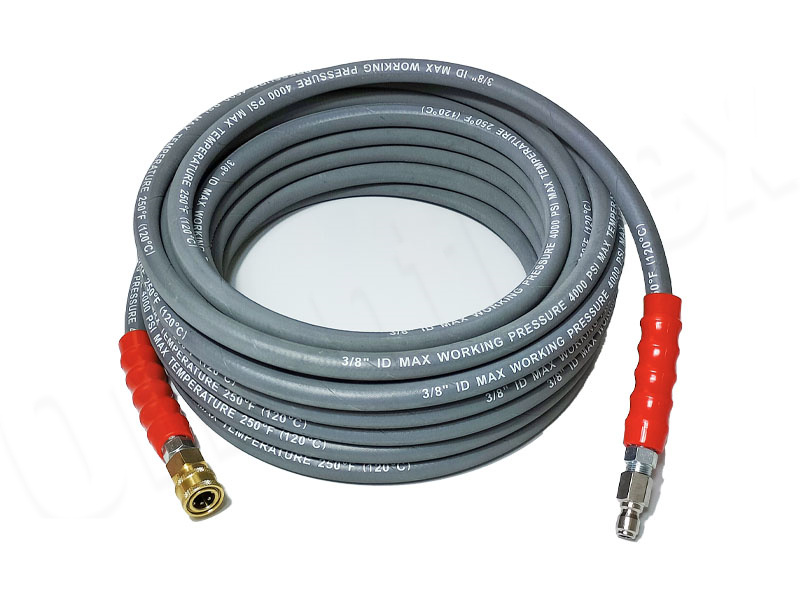

Pressure Washer Hose
High Pressure Washer Hose
Pressure Washer Hose is made from high pressure resistant synthetic rubber. Besides, there are high tensile strength steel wire braid. Thus the washer hose can bear much higher pressure. It’s mainly for the cleaning work together with a washer.
Water Pressure Hose Structure
Tube: Black and oil resistant synthetic rubber
Reinforcement: One or two layers of high tensile steel wire braid
Cover: Black, abrasion and weather resistant synthetic rubber
Temperature: -40℃ to +121℃ ( -40℉ to +250℉ )
Application: Pressure resistant rubber hose is used on hot and cold water high pressure and heavy duty cleaning equipment.
Pressure Washer Pipe is made for high pressure water blasting and to clean the dirtiest industrial equipment surface. Hose pipe for pressure washer can withstand the heavy-duty water pressure without abrasion, crushing or kinking.
This hose consists of a gray and non-marking synthetic rubber cover and a nitrile rubber tube. It has excellent high temperature capacity up to 300℉ and the working pressure could reach to 3000 psi. Besides the high pressure hose, pressure washer coupling is also available.
Washer Hose Features
- Ozone and weather resistant
- High pressure resistant
- Abrasion resistant
- Assembly is available
Power Washer Hose Specification
| ID | OD | WP | BP | BR | |||||
| inch | mm | inch | mm | mpa | psi | mpa | psi | mm | inch |
| 1/4" | 6.4 | 0.47 | 12 | 21 | 3000 | 84 | 12000 | 102 | 4 |
| 1/4" | 6.4 | 0.59 | 15 | 40 | 5800 | 160 | 23200 | 102 | 4 |
| 5/16" | 7.9 | 0.59 | 15.1 | 21.5 | 3120 | 86 | 12480 | 114 | 4.5 |
| 5/16" | 7.9 | 0.65 | 16.5 | 35 | 5075 | 140 | 20300 | 114 | 4.5 |
| 3/8" | 9.5 | 0.69 | 17.5 | 18 | 2615 | 72.1 | 10460 | 127 | 5 |
| 3/8" | 9.5 | 0.75 | 19.1 | 33 | 4800 | 132 | 19200 | 127 | 5 |
