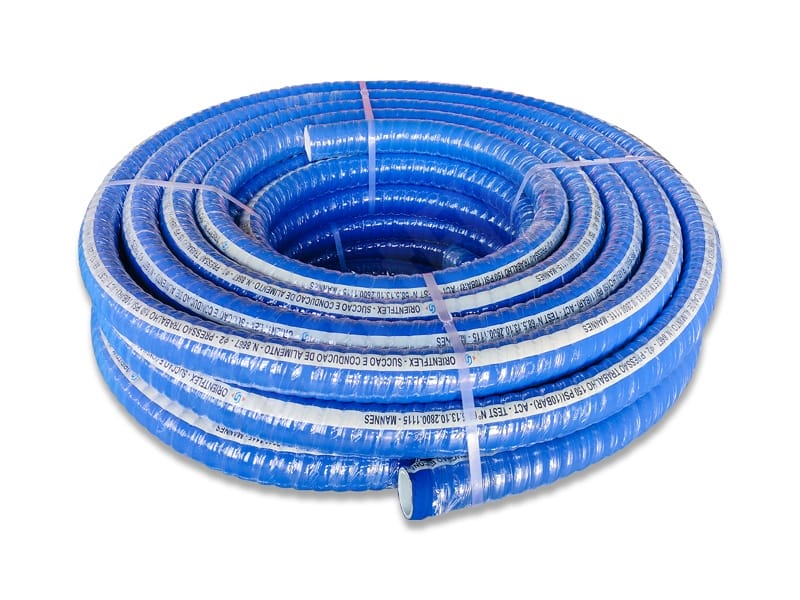

Food Suction Hose
Food Suction Hose
Food suction hose is ideal for both suction and discharge of foods. Because it can bear both positive and negative pressures. Orientflex can offer you food suction hose with different materials like NBR, NR and EPDM. While each of them meets the FDA standard. Then such food hoses can be your good choice for food industry.
Food Suction Hose
Tube: Food grade NR, NBR or EPDM
Reinforcement: Multiply of high strength synthetic fabrics and helix wires
Cover: Smooth or wrapped surface, synthetic rubber, blue or white, weather resistant
Temperature: -32℃ to 80℃ (-90℉ to +176℉)
Application: FDA approved food hose designed to deliver foods such as milk, juice, beer, edible oil, etc.
Food Suction Hose is designed for the food transfer application that demands both flexibility and ruggedness with a clean, white and FDA grade tube. The food grade EPDM tube is odorless and suitable for milk, fruit juices, soft drinks, beer, wines, cosmetics and other non-oily food products.
The inner tube of such food grade tubing is synthetic rubber that meets 3-A, USDA and FDA standards for food handling. Food hose has a smooth bore that encourages max flow rates and inhibits bacterial growth. The cover is corrugated gray nitrile for flexibility and chemicals, heat and aging resistance.
Food grade suction hose is reinforced with multiple textile spirals and a dual wire helix. Thus it has high strength with improved coupling retention and kink resistance. Food grade rubber tubing has a temperature range from -90 ℉ to +176 ℉. Besides, it can be used with a variety of coupling options.
Food Suction Hose Features
FDA grade tube
Weather and abrasion resistant
Handling variety of food products
Both smooth and corrugated covers are available
Food Suction Hose Specification
| ID | OD | WP | BP | L | |||
| inch | mm | mm | bar | psi | bar | psi | m |
| 3/4" | 19.1 | 32 | 20 | 300 | 60 | 900 | 61 |
| 1" | 25.4 | 38 | 20 | 300 | 60 | 900 | 61 |
| 1-1/4" | 31.8 | 46 | 20 | 300 | 60 | 900 | 61 |
| 1-1/2" | 38.1 | 53 | 20 | 300 | 60 | 900 | 61 |
| 2" | 50.8 | 67 | 20 | 300 | 60 | 900 | 61 |
| 2-1/2" | 63.5 | 81 | 20 | 300 | 60 | 900 | 61 |
| 3" | 76.2 | 93 | 20 | 300 | 60 | 900 | 61 |
| 3-1/2" | 89 | 107 | 20 | 300 | 60 | 900 | 61 |
| 4" | 101.6 | 122 | 20 | 300 | 60 | 900 | 61 |
| 5" | 125 | 147 | 20 | 300 | 60 | 900 | 30.5 |
| 6" | 152 | 174 | 20 | 300 | 60 | 900 | 30.5 |
