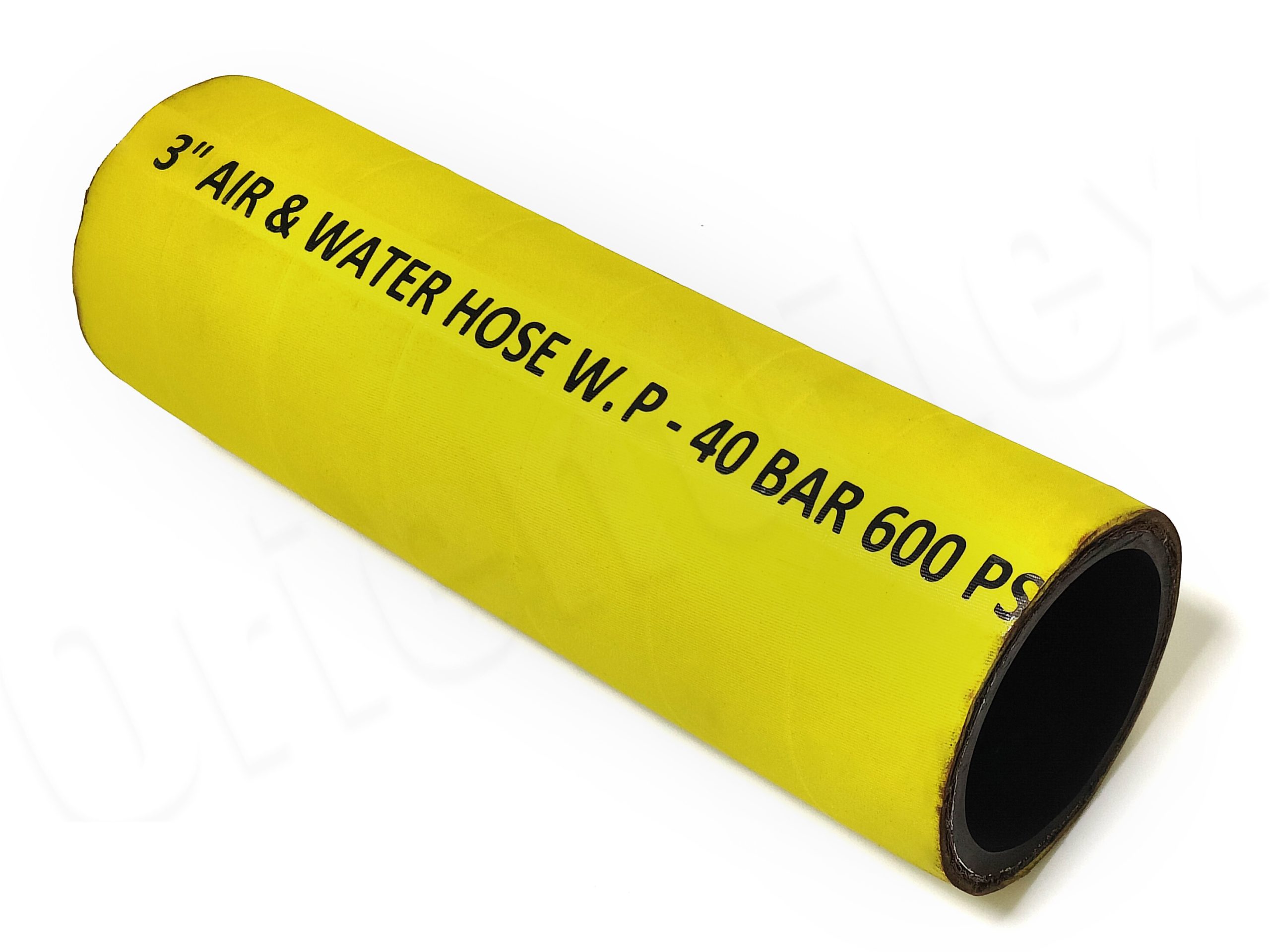

600 PSI Air Hose
600 PSI Air Hose
600 psi air hose is made from NR or SBR which is the same with Jack Hammer hose. But the reinforce of such high pressure air hose is high tensile steel wire braid. Thus it can bear high pressure up to 600 psi.
Wire Air Hose Structure
Tube: NR or SBR, black
Reinforcement: High tensile steel wire braid or spiral
Cover: NR or SBR, black, yellow and gray
Temperature: -30℃ to +80℃ (-22℉ to +176℉)
Wire Reinforced Air Hose provides long service life in heavy construction, mining and quarry. Its steel reinforcement withstands extreme abuse, tugging and pulling.
The wire air hose is available in two different models: one has a standard temperature and up to 200 °F and the other has a high temperature range up to 275 °F. The high temperature hoses can handle high temperature compressor applications without after-cooler easily.
Its cover offers excellent abrasion and weather resistance, while the tube is resistant to heat and oil “mist” from compressors. If the tube is influenced by too much of oil, the hose will swell and fail prematurely because excessive or prolonged heat will degrade the rubber compounds.
Wire Air Hose Features
- Oil mist resistant
- High working pressure
- Weather and ozone resistant
- Excellent abrasion resistant
Wire Air Hose Application
For heavy duty air supply that requires high temperature. For use with high temperature compressors without an after-cooler. It’s used in mining, quarry, construction, industrial air placement, sand blasting and heavy duty equipment
600 PSI Air Hose Specification
| ID | OD | WP | BP | L | ||||
| inch | mm | mm | bar | psi | bar | psi | m | ft |
| 1/2" | 12.7 | 23 | 42 | 600 | 126 | 1800 | 30.5 | 100 |
| 3/4" | 19.1 | 30 | 42 | 600 | 126 | 1800 | 30.5 | 100 |
| 1" | 25.4 | 37 | 42 | 600 | 126 | 1800 | 30.5 | 100 |
| 1-1/4" | 31.8 | 46 | 42 | 600 | 126 | 1800 | 30.5 | 100 |
| 1-1/2" | 38.1 | 52 | 42 | 600 | 126 | 1800 | 30.5 | 100 |
| 2" | 50.8 | 68 | 42 | 600 | 126 | 1800 | 30.5 | 100 |
| 2-1/2" | 63.5 | 80 | 42 | 600 | 126 | 1800 | 30.5 | 100 |
| 3" | 76.2 | 92 | 42 | 600 | 126 | 1800 | 30.5 | 100 |
| 4" | 101.6 | 123 | 42 | 600 | 126 | 1800 | 30.5 | 100 |
| 6" | 152 | 175 | 42 | 600 | 126 | 1800 | 30.5 | 100 |
